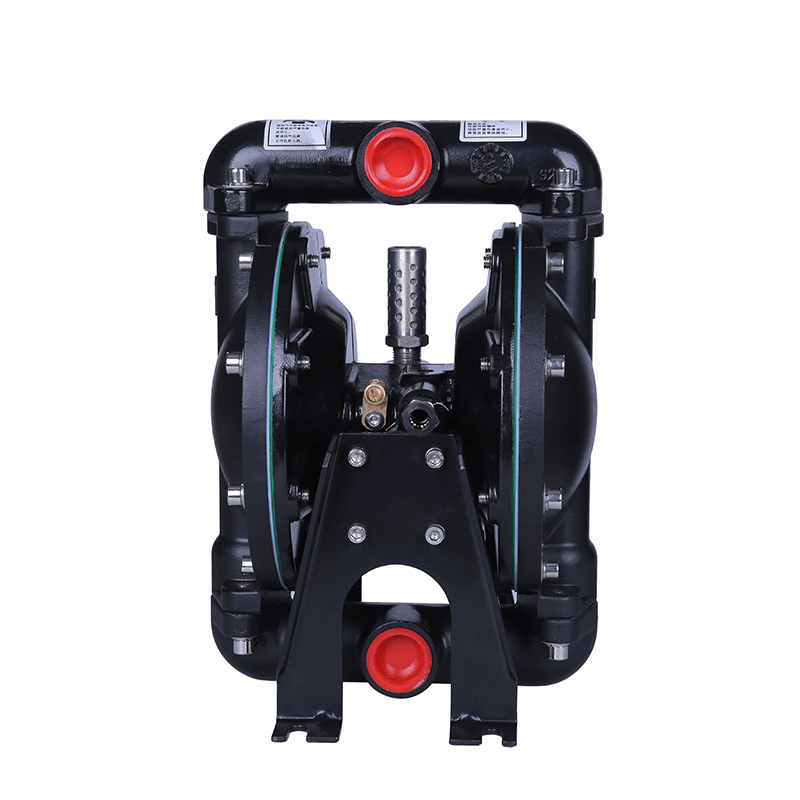

ARO replacement diaphragm pump

Short Description:


  • PART NO.: KMR666120-344-C
  • PRODUCT BRAND: KMR PUMP
  • COMPATIBLE BRAND PART NO.: 666120-344-C
  • COMPATIBLE BRAND: ARO
  • PUMP SIZE: 1''
  • WETTED MATERIAL: Aluminum
  • NON-WETTED MATERIAL: Aluminum
  • DIAPHRAGM: PTFE,Santoprene
  • CHECK VALVE BALL: PTFE
  • CHECK VALVE SEAT: PTFE
  • PORT: BSP/NPT
  • MUFFLER: stainless steel
  • :
  • Product Detail

    Product Tags

    Manifold and Capfluid Material Aluminum
    Centor body Material Aluminum
    Max Flow rate 49L/min
    Material Inlet 1’’BSP/NPT
    Air inlet 1/4’’BSP/NPT
    Pump Certificate CE
    Warranty 1 year
    6

    [MAIN PARAMETER]~Material: Aluminum; Diaphragm Material: Nitrile;

    Type: Double diaphragm;

    Operation Type: Air-operated;

    Inlet/Outlet Port Size/Standard:1 inch (25 mm);

    Air Inlet Size: 1/4 inch (6.35 mm)
    [Quality Performance ~Maximum Head:275.59FT/84M,

    Max Pressure: 120PSI.

    Max Temp : 150 ℉.

    Top quality glyd ring, a double-acting seal that delivers better performance.

    [UNIQUE DESIGN]~Features an externally serviceable air distribution system and all-bolted construction. Modular air valve is stall-free, this low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes down time.

    [EXCELLENT CONSTRUCTION]~Rugged construction - resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling.
    [VERSATILE USE]~The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc.
